Troy Bilt HORSE Wheel Axle "Complete" Rebuild Kit M-GW-1578 1 1/4" Key Shaft seals gaskets Bushings Shims

This listing is for a NEW Troy-Bilt HORSE Tiller Axle Shaft Assembly Kit complete with 1 1/4" key, snap rings, bushings, gaskets, shims and seals to rebuild your tiller to like new condition.  This axle will replace the later axles, primarily part numbers GW-1578 that have the 1 1/4-inch long key slot.  These were used on many Horse tillers with serial numbers 600010 and up.   This will also replace early 1" keyed axles.  Prevent axle seal leakage by giving your new seals a fresh precision ground surface to ride on PLUS this kit includes most everything you are going to need to seal up your tiller with it's new axle.

OUR KIT INCLUDEs THE FOLLOWING:

1 M-GW-1578 Axle (15 5/8" long) with 1 1/4" keyway

1 M-GW 714-04014 1/4"x1 1/4" key

2 M-GW-9511 Snap rings which are 1" ID and 0.080 thick to match this axle.

2 M-94104300 Bronze Bushing

2 M-240804 Axle Oil Seal

1 PAIR M-GW-1124 Drive Shaft Assy Gaskets

6 Assorted Axles Shims

2 M-GW-9603 "Fork Shoe" Eccentric Arm O-Rings

1 M-GW-9611 Seal -Oil Eccentric

2 Small Snap Rings

1 M-GW-1123 Top Power Unit/Transmission Assy Gasket

 All these parts are Made in USA except the some of the seals.

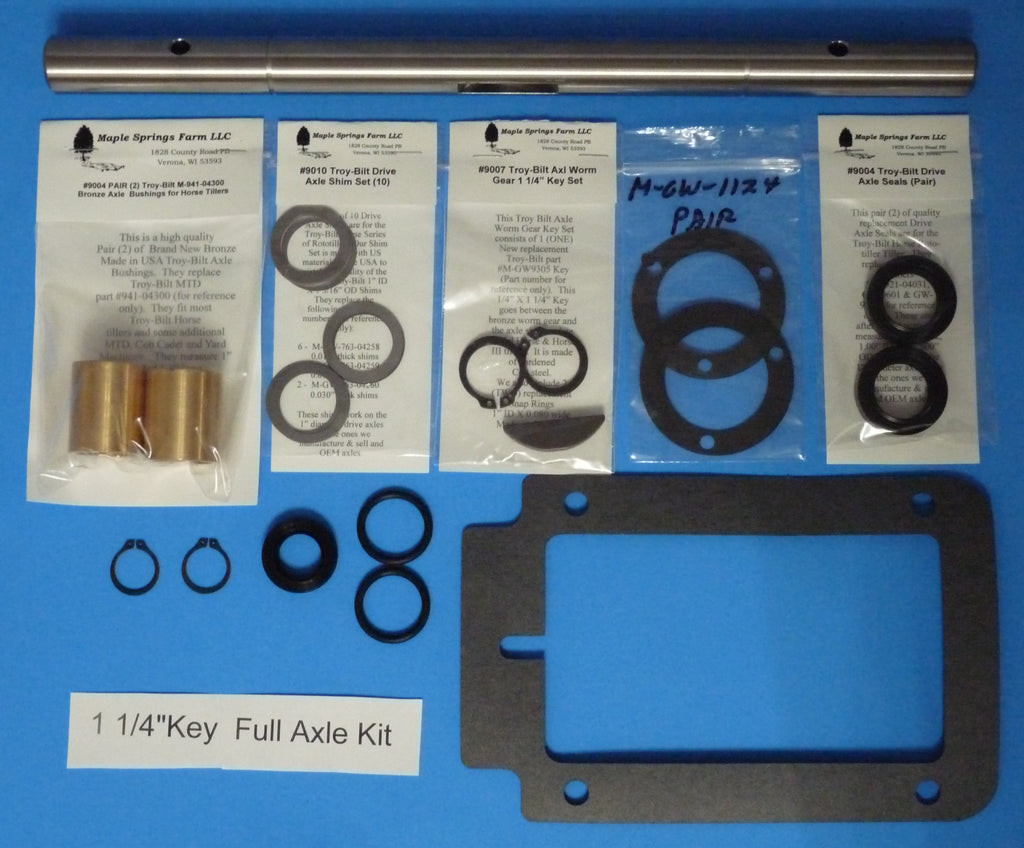

Please look at the photos to see what you are buying
