Troy Bilt HORSE Wheel Axle "Complete" Rebuild Kit 1" Key Shaft seals gaskets Bushings Shims

Rego Engineering

$139.98
SKU: 1" Kit Complete
Availability: 6 in stock

This listing is for a NEW Troy-Bilt HORSE Tiller Axle Shaft Assembly Kit complete with HyPro key, snap rings, bushings, gaskets, shims and seals to rwtor you tiller to like new condition.  This axle will replace the earlier axles, primarily part numbers GW-1878, GW-1235 and GW 1235A that have the 1-inch long HyPro key.  These were used on many Horse tillers with serial numbers 1001 through 600009.   Prevent axle seal leakage by giving your new seals a fresh precision ground surface to ride on PLUS this kit includes most everything you are going to need to seal up your tiller with it's new axle.

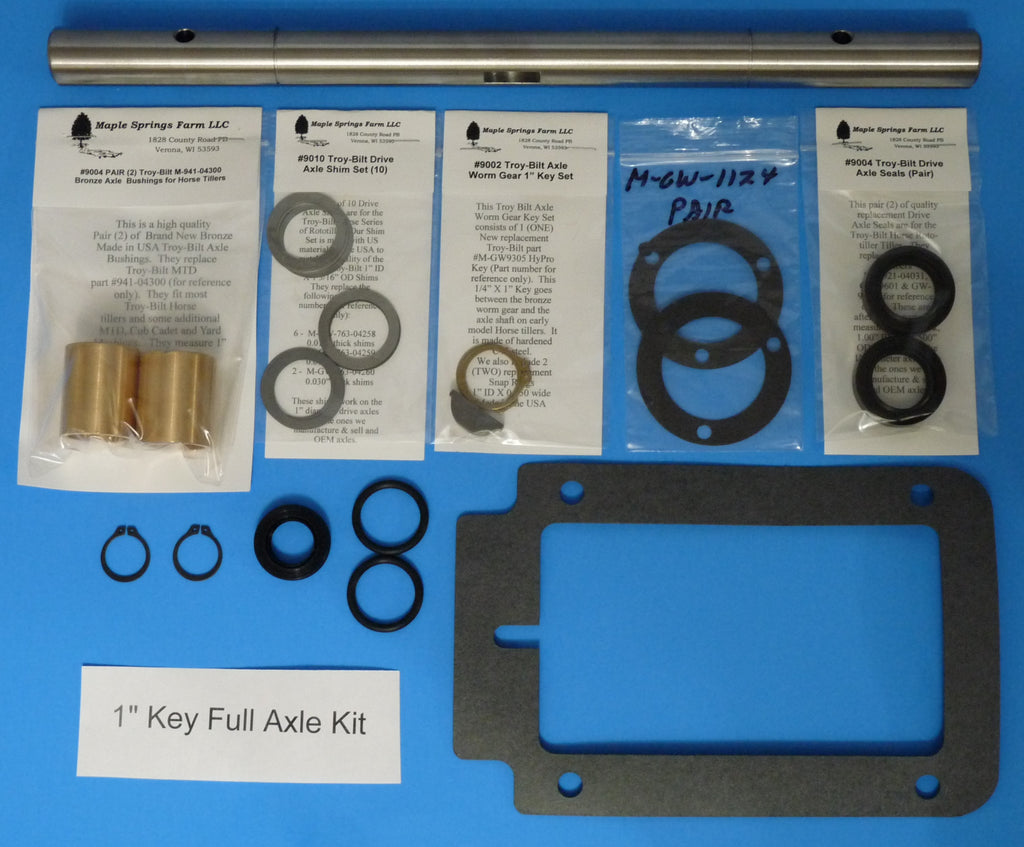

OUR KIT INCLUDEs THE FOLLOWING:

1 M-GW-1878 Axle (15 5/8" long) with 1 " keyway

1 M-GW 9305 1/4"x1" high pro key

2 M-716-04104 Snap rings which are 1" ID and 0.050 thick to match this axle.

2 M-94104300 Bronze Bushing

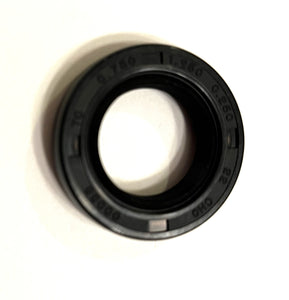

2 M-240804 Axle Oil Seal

1 PAIR M-GW-1124 Drive Shaft Assy Gaskets

6 Assorted Axles Shims

2 M-GW-9603 "Fork Shoe" Eccentric Arm O-Rings

1 M-GW-9611 Seal -Oil Eccentric

2 Small Snap Rings

1 M-GW-1123 Top Power Unit/Transmission Assy Gasket

2- Axle Roll Pins

 All these parts are Made in USA except the some of the seals.

Please look at the photos to see what you are buying
